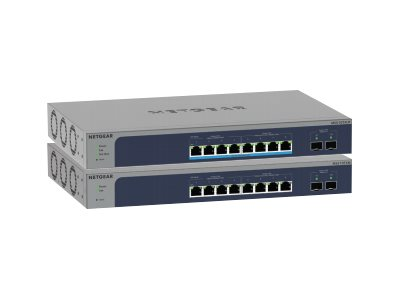

NETGEAR Smart MS510TXUP
Switch - L3 Lite - smart - 4 x 100/1000/2.5G (PoE++) + 4 x 100/1000/2.5/5/10G (PoE++) + 2 x 10 Gigabit SFP+ (uplink) - rack-mountable, desktop - PoE++ (295 W)
Tymczasowo niedostępne
Producent NETGEAR
Kod producenta MS510TXUP-100EUS Copied
-
Zaloguj się, aby poznać cenę
- Dodatkowe informacje
- Informacja
- Specyfikacje
- Rozszerzone specyfikacje
Rozszerzone specyfikacje General
Device Type Switch - 8 ports - L3 Lite - smart Enclosure Type Rack-mountable, desktop Ports 4 x 100/1000/2.5G (PoE++) + 4 x 100/1000/2.5/5/10G (PoE++) + 2 x 10 Gigabit SFP+ (uplink) Power Over Ethernet (PoE) PoE++ PoE Budget 295 W Performance Fabric throughput: 140 Gbps
Forwarding rate (64-byte packets): 14.8 Mpps
2.5 Gbps copper latency (64-byte packets): 5.903 µs
2.5 Gbps copper latency (1518-byte packets): 6.040 µs
2.5 Gbps copper latency (9216-byte packets): 6.079 µs
10 Gbps copper latency (64-byte packets): 2.420 µs
10 Gbps copper latency (1518-byte packets): 2.501 µs
10 Gbps copper latency (9216-byte packets): 2.499 µs
10 Gbps fibre latency (64-byte packets): 1.257 µs
10 Gbps fibre latency (1518-byte packets): 1.337 µs
10 Gbps fibre latency (9216-byte packets): 1.348 µsCapacity Packet buffer size: 2 MB
ACL entries (ingress): 100
VLANs supported: 256
IGMP groups: 256
Priority queues: 8
DHCP snooping entries: 256MAC Address Table Size 32000 entries Jumbo Frame Support 10KB Routing Protocol IGMP, STP, RSTP, MSTP, IGMPv2, IGMPv3, MLD, MLDv2 Remote Management Protocol IPv6, SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS, RADIUS, RSTP, RMON 1, RMON 2, RMON 3, RMON 9, TACACS+ Encryption Algorithm TLS 1.2 Authentication Method RADIUS, Extensible Authentication Protocol (EAP), TACACS+ Features ACL support, 802.1x authentication, Advanced QoS, DSCP support, DoS attack prevention, IGMP querier, IGMP snooping, egress rate limiting, EEE, cable test, GVRP, Voice VLAN, LLDP support, LLDP-MED, LACP, cloud managed, VoIP support, ZTP, DHCP snooping, protected ports, loop prevention, port mirroring, dual firmware images, firmware upgradable, store and forward, WRR, SP, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Unknown Storm Control, flow control, full duplex mode, block unknown multicast, DHCP client, Guest VLAN, DiffServ support, loopback detection, DNS client, BPDU, EAPOL, SNTP support, UDP, Syslog support, 3 fans Compliant Standards IEEE 802.1x, IEEE 802.1p, IEEE 802.3az, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, UPnP Processor : 1 GHz RAM 256 MB Flash Memory 64 MB Status Indicators Power, fan, link/activity/speed, PoE max Expansion / Connectivity
Interfaces 4 x 100/1000/2.5G RJ-45 PoE++ - 60 W
4 x 100/1000/2.5G/5G/10G RJ-45 PoE++ - 60 W
2 x 10GBase-X SFP+ uplinkPower
Power Device Internal power supply Installed Qty 1 Power Consumption Operational 380 Watt Miscellaneous
Included Accessories Rubber feet Rack Mounting Kit Included MTBF 848,553 hours Localisation Europe Dimensions & Weight
Width 33 cm Depth 20.6 cm Height 4.3 cm Weight 2.51 kg Manufacturer Warranty
Service & Support Limited warranty - replacement - lifetime - response time: next business day Environmental Parameters
Min Operating Temperature 0 °C Max Operating Temperature 50 °C Humidity Range Operating 90% (non-condensing) Min Storage Temperature -20 °C Max Storage Temperature 70 °C Humidity Range Storage 95% (non-condensing) - Do pobrania
