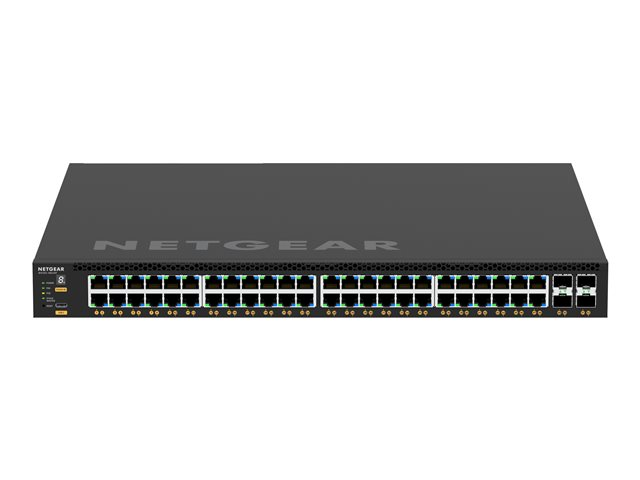

NETGEAR M4350-48G4XF
Switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ - front to back airflow - rack-mountable - PoE+ (1440 W)
4 w magazynie
Producent NETGEAR
Kod producenta GSM4352-100NES Copied
-
Zaloguj się, aby poznać cenę
- Dodatkowe informacje
- Informacja
- Specyfikacje
- Rozszerzone specyfikacje
Rozszerzone specyfikacje General
Device Type Switch - 52 ports - L3 - Managed - stackable Enclosure Type Front to back airflow rack-mountable 1U Subtype Gigabit Ethernet Ports 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ Power Over Ethernet (PoE) PoE+ PoE Budget 1440 W Performance Routing/switching capacity: 176 Gbps
Throughput (64-byte packet size): 130.94 Mpps
Latency (1 Gbps): < 2.20 µs
10 Gbps fibre latency (64-byte packets): < 0.70 µsCapacity Packet buffer size: 32 MB
Multicast entries (IPv4): 512
Multicast entries (IPv6): 256
VLANs supported: 4000
Jumbo frame size: up to 12000
IGMP multicast groups: 2000
DHCP users: 2000
ARP entries: 4000
NDP entries: 512MAC Address Table Size 16K entries Routing Protocol Policy-based routing (PBR), RIP, VRRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, IGMP, IGMPv3, MLDv2, RSTP Remote Management Protocol SNMP 3, HTTPS, CLI, Telnet, SSH-2, MIB, RSTP, DHCP, RMON Encryption Algorithm TLS 2.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, SHA, MD5 Authentication Method RADIUS, TACACS+ Features Jumbo Frames support, LLDP-MED, RSPAN, PTPv2 TC support, MMRP, MVRP, BPDU, STRG, GMRP, GVRP, DAI, IP source guard, DHCPv4 server, DHCPv6 server, proxy ARP, sFlow, BOOTP support, ARP support, DoS attack prevention, DiffServ support, NSF, LACP, Quad-core CPU Compliant Standards IEEE 802.3af, IEEE 802.3at Processor 1 x ARM Cortex-A57: 1.8 GHz RAM 2 GB DDR4 SDRAM Flash Memory 512 MB Expansion / Connectivity
Interfaces 48 x 10/100/1000 Base-T RJ-45 PoE+
4 x 1000Base-X/10GBase-X SFP+
1 x management (Gigabit LAN) RJ-45
2 x USB Type A
1 x console (USB) Type CPower
Power Device Internal power supply Installed Qty 1 Power Provided 550 Watt Power Consumption Operational 99 Watt Power Consumption Stand by 48.5 Watt Miscellaneous
Included Accessories Rubber feet, mounting brackets, rubber caps Cables Included 1 x console cable Rack Mounting Kit Included Compliant Standards SCCP, IEEE 1588, AAA, AN/NZS 60950.1:2015, ANSI C63.4:2014, AS/NZS CISPR32:2013 Class A, BSMI CNS 13428, BSMI CNS 14336-1, CCC, CISPR 32:2012, EN 55024:2010, EN 55032:2012/AC:2013, EN 60950, EN 60950-1:2016+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2 Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, FCC CFR 47 Part 15 Class A, GB 4943.1-2011, GB/T9254-2008 Class A, GB4943.1-2001, ICES-003:2016 issue 6 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, ISED, RCM, UL 1950, VCCI-CISPR 32:2016 Class A, YD/T993-1998 Localisation Europe, North America, United Kingdom Dimensions & Weight
Width 44 cm Depth 4.32 cm Height 40 cm Weight 7.19 kg Manufacturer Warranty
Service & Support Limited warranty - lifetime Environmental Parameters
Min Operating Temperature 0 °C Max Operating Temperature 50 °C Humidity Range Operating 90% (non-condensing) Min Storage Temperature -20 °C Max Storage Temperature 70 °C Humidity Range Storage 95% (non-condensing) - Do pobrania
